Left-Leaning Red-Black Trees#

Left-leaning red-black BSTs#

Structure

A left-leaning red-black tree is a type of self-balancing binary search tree that maintains the following properties:

  • Every node is colored either red or black.

  • The root node is always black.

  • Every leaf (null node) is considered black.

  • If a node is red, both its children are black.

  • Every path from a node to its descendant leaves contains the same number of black nodes.

Why Red-Black Trees?#

  • Most of the self-balancing BST library functions like map, multiset, and multimap in C++ use Red-Black Trees.

  • Implementing CPU Scheduling Linux.

  • K-mean clustering algorithm in machine learning for reducing time complexity.

  • MySQL also uses the Red-Black tree for indexes on tables in order to reduce the searching and insertion time.

  • Implementation of the virtual memory manager in some operating systems, to keep track of memory pages and their usage.

  • Many programming languages (such as Java, C++, and Python) have implemented Red Black Trees as a built-in data structure for efficient searching and sorting of data.

  • Implementation of graph algorithms such as Dijkstra’s shortest path algorithm and Prim’s minimum spanning tree algorithm.

  • Implementation of game engines.

– Geeks For Geeks

  • Guaranteed time complexity of O(log n) for basic operations like insertion, deletion, and searching.

  • Self-balancing.

  • Used in a wide range of applications due to their efficient performance and versatility.

  • The mechanism used to maintain balance in Red Black Trees is relatively simple and easy to understand.

– Geeks For Geeks

  • Red Black Trees require one extra bit of storage for each node to store the color of the node (red or black).

  • Complexity of Implementation.

  • Although Red Black Trees provide efficient performance for basic operations, they may not be the best choice for certain types of data or specific use cases.

– Geeks For Geeks

Implementing 2-3 trees with binary trees#

How to represent a 3-node?

https://iq.opengenus.org/content/images/2020/06/2-3-Tree-1.png
Regular BST
  • No way to tell a 3-node from a 2-node

  • Can’t (uniquely) map from BST back to 2-3 tree

../../_images/17_02.png
Regular BST with red “glue” nodes
  • Wastes space for extra node

  • Messy code

../../_images/17_03.png
Regular BST with red “glue” links
  • Widely used in practice

  • Arbitrary restriction: red links lean left

../../_images/17_04.png
https://www.researchgate.net/publication/336244989/figure/fig1/AS:961691823112193@1606296606066/Isomorphism-between-LLRB-and-2-3-4-trees.png

Fig. 39 LLRB Tree v. 2-3 Tree#

Definition of LLRB trees (without reference to 2-3)#

A BST such that
  • No node has two red links connected to it

  • Red links lean left

  • Every path from root to null has the same number of black links

../../_images/17_08.png

Fig. 40 \(red-black\ tree\)#

Representation#

Each node is pointed to by precisely one link (from its parent) \(\Rightarrow\) can encode color of links in nodes

private static final boolean RED   = true;
private static final boolean BLACK = false;

private class Node {
  Key     key;
  Value   val;
  Node    left;
  Node    right;
  // color of parent link
  Boolean color;
}

private boolean isRed(Node x) {
  // null links are black
  if (x == null) return false;
  return x.color == red;
}
../../_images/17_10.png
\[\begin{split}h = root\\\end{split}\]
\[\begin{split}h.left.color\ is\ RED\\\end{split}\]
\[h.right.color\ is\ BLACK\]

The road to LLRB trees#

../../_images/17_11.png

Fig. 42 BSTs can get imbalanced#

../../_images/17_07.png

Fig. 43 2-3 trees (balanced but awkward to implement)#

../../_images/17_09.png

Fig. 44 3-nodes “glued” together with red links#

../../_images/17_08.png

Fig. 45 LLRB trees (color in links)#

../../_images/17_12.png

Fig. 46 implementing LLRB trees (color in nodes)#

Red-Black Tree Operations#

Basic strategy

Maintain 1-1 correspondence with 2-3 trees

During internal operations, maintain
  • Symmetric order.

  • Perfect black balance.

  • [ but not necessarily color invariants ]

To restore color invariants: perform rotations and color flips

Orient a (temporarily) right-leaning red link to lean left

Pseudocode
private Node rotateLeft(Node h) {
  assert isRed(h.right);
  Node x  = h.right;
  h.right = x.left;
  x.left  = h
  x.color = h.color;
  h.color = RED;
  return x;
}
Rotate E left
http://www2.cs.ccu.edu.tw/~tmh104u/rotate5.png

Fig. 47 before & after…#

Invariants: Maintains symmetric order and perfect balance

Orient a left-leaning red link to (temporarily) lean right

Pseudocode
private Node rotateRight(Node h) {
  assert isRed(h.right);
  Node x  = h.left;
  h.left  = x.right;
  x.right = h
  x.color = h.color;
  h.color = RED;
  return x;
}
Rotate E right
http://www2.cs.ccu.edu.tw/~tmh104u/rotate3.png

Fig. 48 before & after…#

Invariants: Maintains symmetric order and perfect balance

Recolor to split a (temporary) 4-node

Pseudocode
private Node colorFlip(Node h) {
  assert isRed(h);
  assert isRed(h.left);
  assert isRed(h.right);
  h.color        = RED;
  h.left.color   = BLACK;
  h.right.color  = BLACK;
}

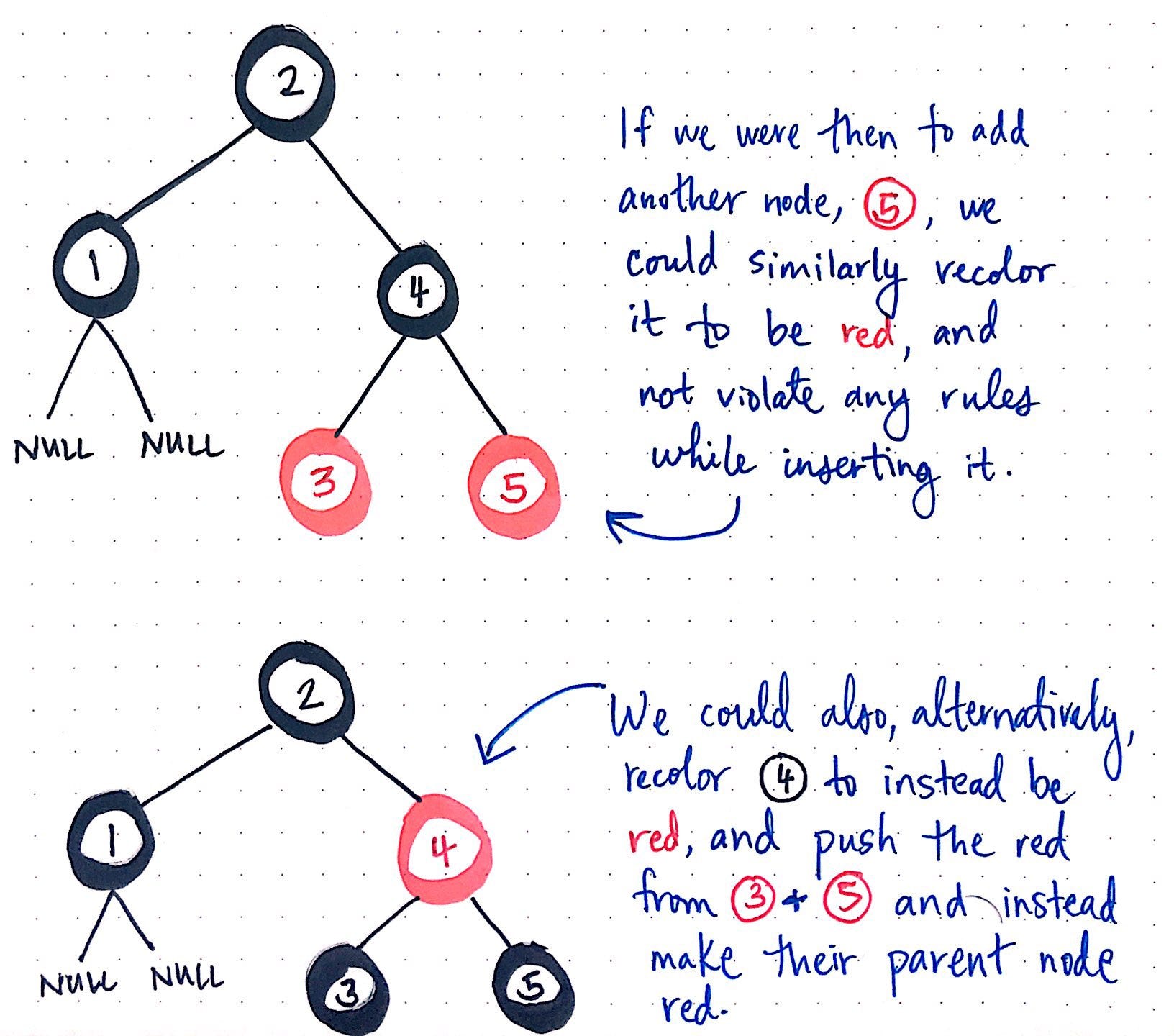

Color flip
https://miro.medium.com/v2/resize:fit:3264/1*STI2ey2kGC4_Z_RENTa41A.jpeg

Fig. 49 before & after…#

Invariants: Maintains symmetric order and perfect balance

Insertions#

Do standard BST insert \(\ \ \ \ \ \ \ \ \ \ \ \ \leftarrow\) preserves symmetric order

Color new link red \(\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \leftarrow\) preserve perfect black balance

Repeat up the tree until color invariants restored
  • two left red links in a row? \(\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \Rightarrow\) rotate right

  • left and right links both red? \(\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \Rightarrow\) color flip

  • right link only red? \(\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \Rightarrow\) rotate left

Inserting H
../../_images/17_21.png

Fig. 50 [R]: add new node here#

../../_images/17_22.png

Fig. 51 [S]: two lefts in a row, rotate right#

../../_images/17_23.png

Fig. 52 [R]: both children red, flip colors#

../../_images/17_24.png

Fig. 53 [E]: right link, so rotate left#

../../_images/17_25.png

Fig. 54 complete#

Inserting P
../../_images/17_26.png

Fig. 55 [M]: add new node here#

../../_images/17_27.png

Fig. 56 [M]: both children red, flip colors#

../../_images/17_28.png

Fig. 57 right link red, rotate left#

../../_images/17_29.png

Fig. 58 two lefts in a row, rotate right#

../../_images/17_30.png

Fig. 59 both children red, flip colors#

../../_images/17_31.png

Fig. 60 complete#

Visualize#

Click the image to hyperlink and interact
../../_images/17_rbt.png

Implementation#

Do standard BST insert and color new link red

Repeat up the tree until color invariants restored
  • two left red links in a row? \(\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \Rightarrow\) rotate right

  • left and right links both red? \(\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \Rightarrow\) color flip

  • right link only red? \(\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \Rightarrow\) rotate left

private Node put(Node h, Key, k, Value v) {
  if (h == null) return new Node(key, val, RED;         // insert at bottom and color red

  int cmp = key.compareTo(h.key)
  if      (cmp <  0) h.left = put(h.left, key, val);
  else if (cmp >  0) h.left = put(h.right, key, val);
  else if (cmp == 0) h.val  = val);

  // following lines restore color invariants
  if (isRed(h.right) && !isRed(h.left))        h = rotateLeft(h);
  if (isRed(h.left ) && !isRed(h.left.left))   h = rotateRight(h);
  // only a few extra lines of code provides near-perfect balance
  if (isRed(h.left ) && isRed(h.right))        h = flipColors(h);

  return h;
}

Visualizations | \(n=255\)#

\(height = 9\)
\(average\ depth = 6.3\)

../../_images/17_32.png

Fig. 61 random#

\(height = 7\)
\(average\ depth = 6.0\)

../../_images/17_33.png

Fig. 62 ascending#

\(height = 13\)
\(average\ depth = 6.5\)

../../_images/17_34.png

Fig. 63 descending#

Balance#

Proposition

Height of corresponding 2-3 tree is \(\le log_2\ n\)

Proof
  • Black height = height of corresponding 2-3 tree \(\le log_2\ n\)

  • Never two red links in a row
    \(\ \ \ \ \ \Rightarrow\) height of LLRB tree \(\le (2 \times black\ height) + 1 \le 2\ log_2\ n\)

  • [A slightly more refined argument show \(height\ \le 2\ log_\ n\)]

../../_images/17_35.png

Fig. 64 \(height\ \le 2\ log_2\ n\)#

Summary#

../../_images/17_table.png

Fig. 65 hidden constant \(c\) is small for r-b BST
(at most \(2\ log_2\ n\) compares)
#
